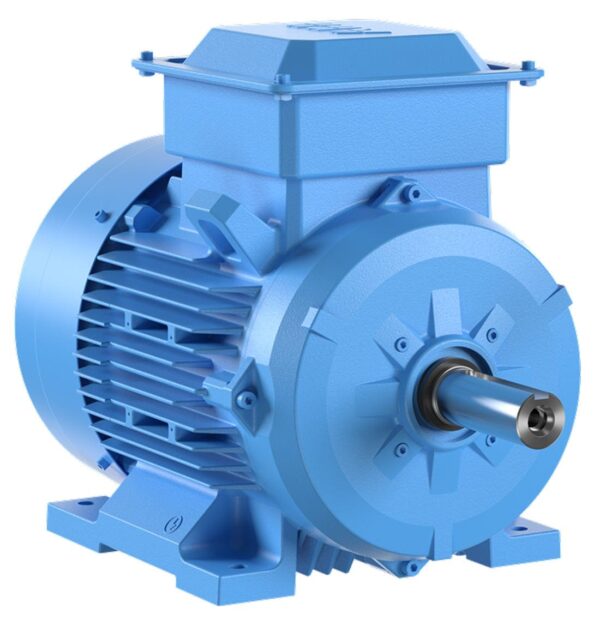

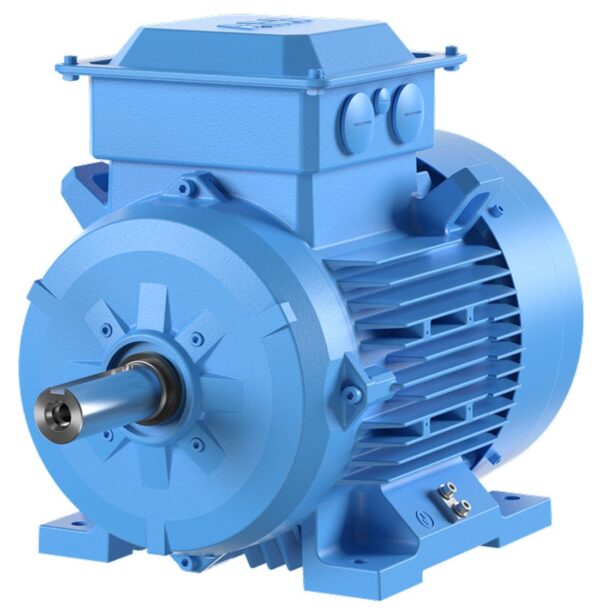

ABB IE2, 45 kW, 60 HP, 415 V, 2 Pole/3000 rpm, DOL, Foot Mounted, 3 Phase, TEFC Cast Iron Induction Motor

Developed from the outset for maximum convenience and easy handling, ABB General performance motors can be used in a wide range of industrial applications. These motors are suitable for OEMs to build into pumps and fans, as well as for gearboxes, conveyors, general machinery and other applications. Some standard designs are available from stock, while customer and application-specific solutions are manufactured to order and can be tailored to meet specific needs.

Watch Video  – Click Here
Download Datasheet – Click Here

Category: Motor, IE2
Motor Poles
2
Output Power kW/ HP
45 kW/ 60 HP
Efficiency Class
IE2
TypeGeneral Performance Three Phase Squirrel Cage TEFC Cast Iron Induction Motor
Synchronous speed (rpm)
3000
Rated Voltage (Volts)
415 Volts (+/- 10%)
Dimensions (LXWXH)in mm
854 mm x 412 mm x 540 mm
WindingCopper
Body Material/ Housing/ Casing
Cast Iron
Standards
CE, IEC60034-1, Ref:IS12615:2018
Insulation Class
F
MountingFoot Mounting (B3)
Frame Size (mm)
225
Operating Frequency
50 Hertz (+/- 5%)
Package Width
635 mm
Package Length
1010 mm
Package Height
830 mm
Invoice Description
ABB IE2, 45 kW, 60 HP, 415 V, 2 Pole/3000 rpm, DOL, Foot Mounted, 3 Phase, TEFC Cast Iron Induction Motor
Product Range
IE2 Motors
Package Gross Weight
361 kg
Total GST Percentage
18.00
HSN Number
85015210
Country of origin
India
